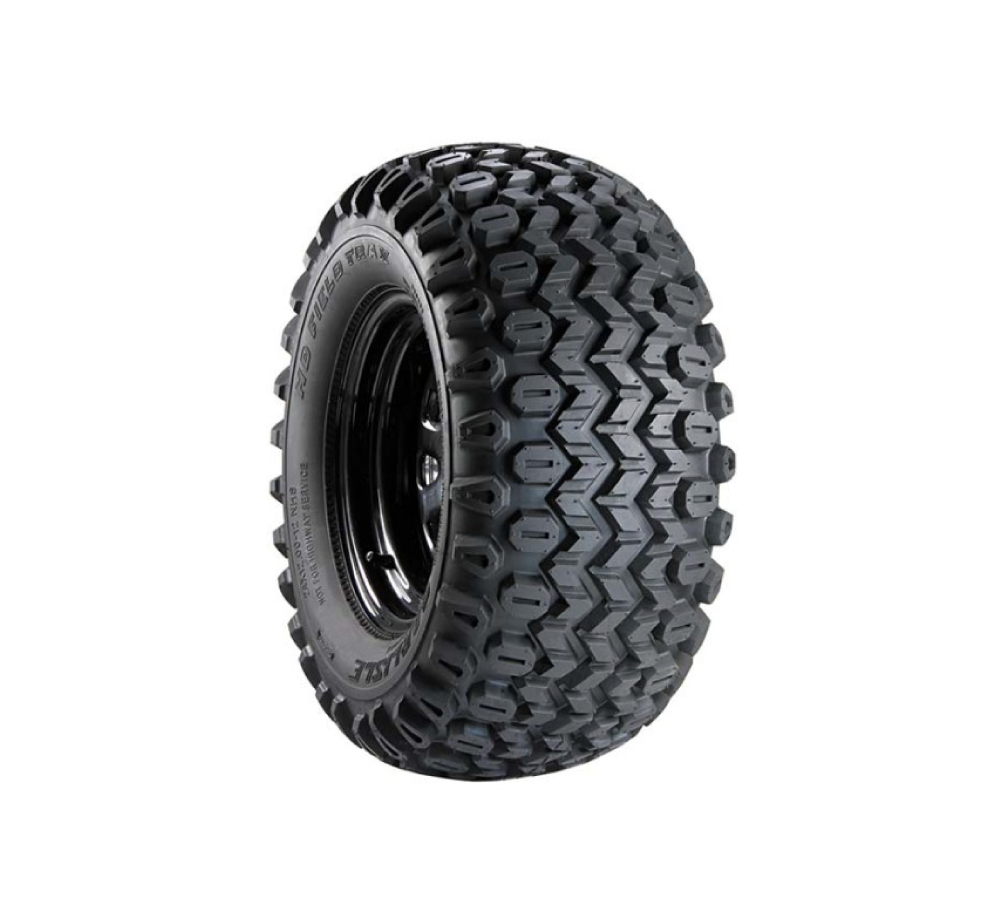

24X12.00-12 NHS 2 PR CARLISLE HD FIELD TRAX TL

24X12.00-12 NHS 2 PR CARLISLE HD FIELD TRAX TL

Description

The HD Field Trax tyre features a wide profile providing stability on hard-packed surfaces. With its non-directional tread pattern and long-lasting construction, the HD Field Trax tyre delivers a smooth and comfortable ride while resisting cut, chips and abrasions.

Features

  • Blended tread pattern for self-cleaning and traction.
  • Wide footprint for hard surfaces.
  • Intermediate to hard surfaces.

Specification

Application
ATV
Size
24X12.00-12 NHS
Size Suffix
NON HIGHWAY SERVICE
Brand
CARLISLE
Pattern
HD FIELD TRAX
Ply Rating
2
TT/TL
TL
Construction
BIAS
Nominal Overall Diameter
24
Nominal Section Width
12.00
Rim
12
Recommended Rim
9.5
Section Width
284.50 mm
Overall Diameter
590.60 mm
Static Load Radius
266 mm
Rolling Circumference
1771 mm
Tread Depth
15.90 mm
Max Load (KG)/Speed (KM/H) 1
307/80
Inflation Pressure Psi
10
Inflation Pressure kPa
70
Specification 1
HEAVY DUTY
