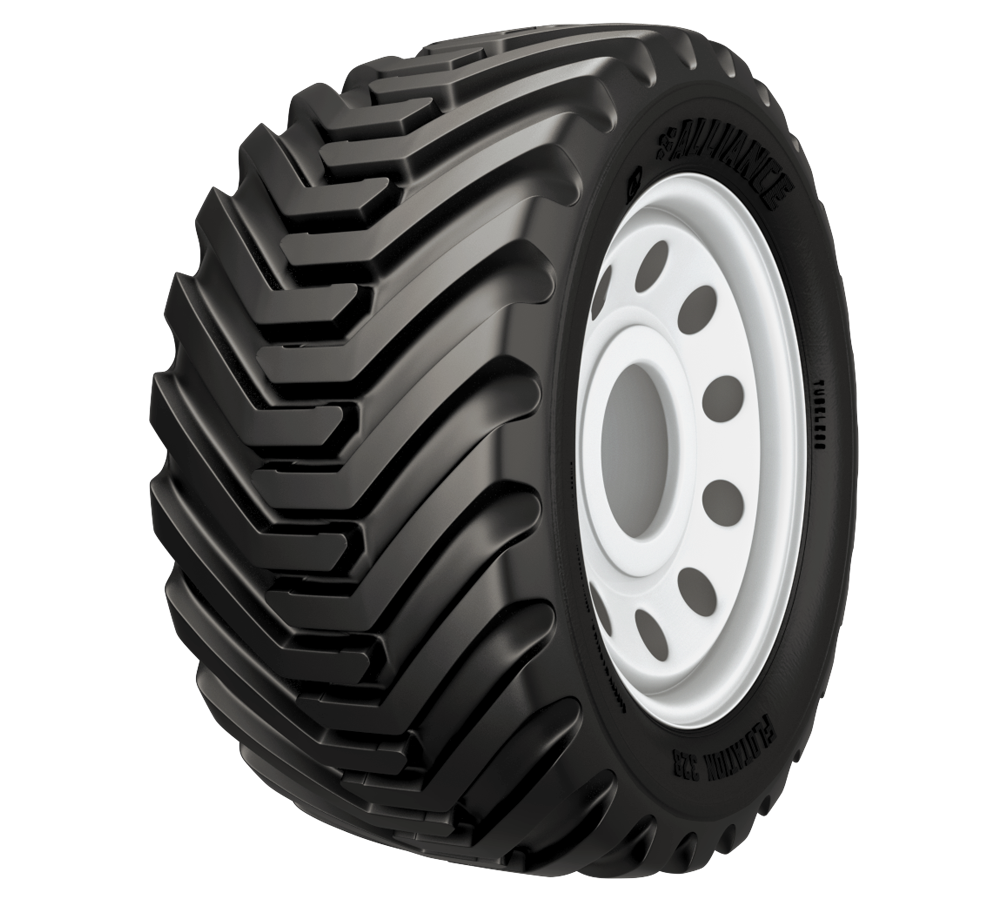

700/40-22.5 16 PR ALLIANCE 328 166A8/162B (FR) 154A8/150B (DW) I-3 TL

Description

The Alliance 328 range of bias-ply flotation tyres that have been developed primarily for use on agricultural implement machinery including balers, cultivators, ploughs, trailers and other towed equipment. High load capacities at low inflation pressures help to protect soils when used in agricultural environments and flotation properties help to provide an even distribution of ground pressure, offering further protection. The 328 also provides low-rolling resistance and steady handling, making them suitable for use in the field and on the road. The 328 design is available in a number of variants including HS (High-Speed), HD (Heavy-Duty) and a competitive Value-Plus range, to meet the demands of specific user requirements and operating conditions.

Features

  • Bias-ply tyre for agricultural implements and trailers.
  • Flotation properties to protect soils.
  • Suitable for use in the field and on the road.
  • Number of variants available across the range.

Specification

Application
FLOTATION
Size
700/40-22.5
Brand
ALLIANCE
Pattern
328
Load/Speed Index
166A8/162B (FR) 154A8/150B (DW)
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
700
Profile
40
Rim
22.5
TRA
I-3
Recommended Rim
24.00DC
Section Width
700 mm
Overall Diameter
1170 mm
Static Load Radius
510 mm
Rolling Circumference
3486 mm
Tread Depth
26.00 mm
Max Load (KG)/Speed (KM/H) 1
5300/40 (FR) 3750/40 (DW)
Max Load (KG)/Speed (KM/H) 2
4770/40 (FR) 3380/50 (DW)
Inflation Pressure Bar
2.60
ECE 106
Yes
Warranty
7 YEARS
